Crown 5-1/2" - 21
Crown 5-1/2" - 21

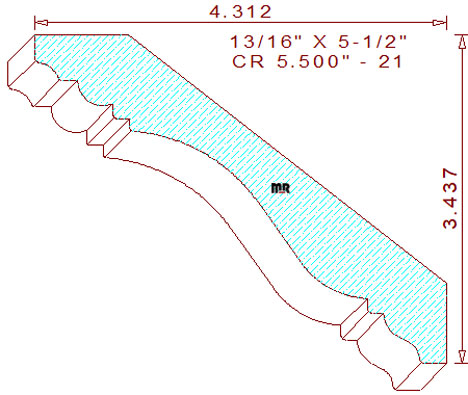

This ornate 5-1/2" - 21 crown mould measures 5.514" width by .812" thickness, allowing the use of a 5-3/4" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The elaborate terminating profile contains a 9/32" vertical fillet on the top left. The short line connects to a 1/4" cove joined to a 3/16" vertical line segment merged with a set of perpendicular stepped lines. Attached to a graceful two tangent radius cyma recta with an additional set of squared lines and a small ogee with a 9/32" flat section on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-1/8" tall with a projection of 3-5/8" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.661
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.607
Top Cutter Head
Width: 5.500
Depth of Cut: 0.366
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$368.00
Not Needed
Total:
$710.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$393.00
Not Needed
Total:
$754.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$430.50
Not Needed
Total:
$820.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
