Crown Moulding 5-9/16"

Crown Moulding 5-9/16"

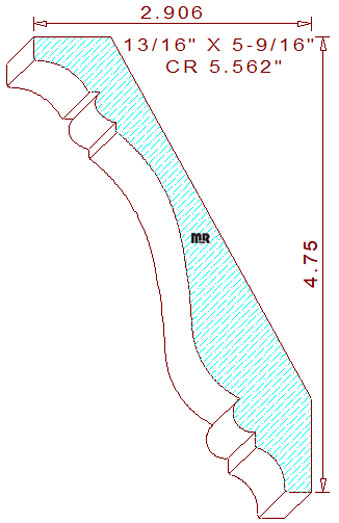

This Decorative Crown Moulding 5-9/16" measures 5.562" wide by .812" thickness with a .394" depth of cut on the right vertical cutters, .849" depth of cut on the left vertical blades, and a .531" depth of cut on the top horizontal set of moulding knives.

The intricate profile is comprised of a 5/8" radius cove with a 1/4" vertical fillet on top, connected to a small half round circle flanked by small fillets, attached to a cyma recta, with another half round circle and 13/32" radius cove, joined to a 9/32" wide horizontal fillet at the bottom of the pattern, The spring angles are fixed at twenty-nine and sixty-one degrees, these specific back bevels set the installed height at 4-5/16" tall with a projection of 3-17/32" wide. Three high points in the detail were deliberately positioned on the same level plane, our creative design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is set parallel to the bed plates.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your client's beautifully elegant home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
