Crown Moulding 5-5/8" - 13

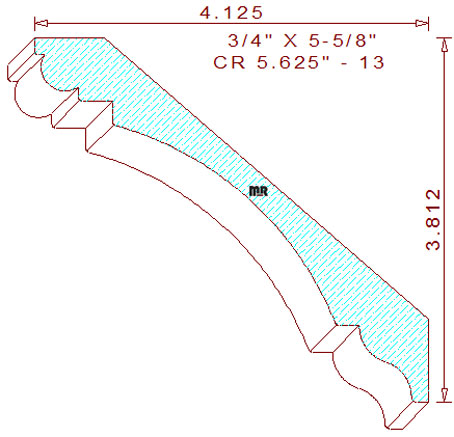

This beautiful crown moulding 5-5/8" - 13 measures 5.625" wide by .750" thickness. The ornate profile is comprised of an ovolo on top, connected to a notched fillet that transitions into a 3-15/32" radius cavetto in the center, attached to a cyma reversa flanked by horizontal lines at the bottom of the pattern. The spring angles are fixed at forty-one and forty-nine degree, both are included in the downloadable dxf file, these specific back bevels set the installed height at 3-13/16" tall with a projection of 4-1/8" wide. We offer a couple of different versions of this profile for your review and consideration, crown 5.687" - 4 and crown 7.812" - 1.

Two high points in the design were deliberately positioned on the same plane, our consummate design features will assure excellent hold down conditions while milling this detail if the machine's pressure shoe is parallel to the bed plates. Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.625" / Depth of Cut = .469" (top knives).

Thickness = .750" / Depth of Cut = .568" (right blades) & .555" (left cutters).
