Crown 7-13/16" - 1
Crown 7-13/16" - 1

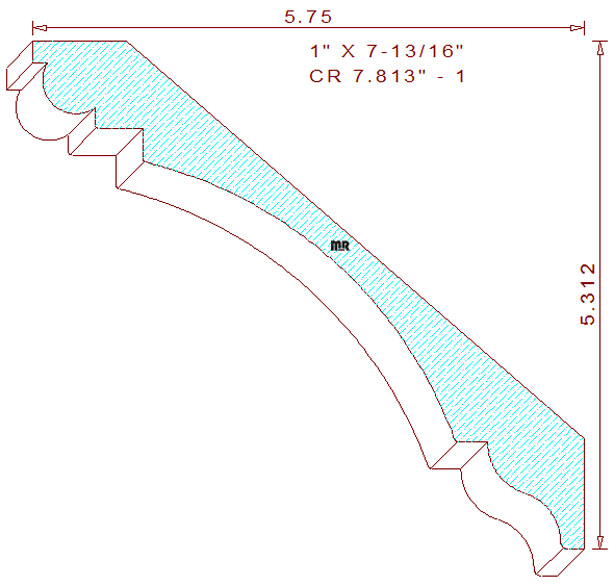

This stylish 7-13/16" - 1 crown mould measures 7.824" wide by 1.000" thick. The elaborate profile comprises an ovolo located on the top, connected to a notched fillet that transitions into a 4-19/32" radius cavetto in the center, attached to a cyma reversa flanked by horizontal fillets at the bottom of the detail. The spring angles are fixed at 41 and 49 degrees, which are both included in the downloadable DXF file. These specific back bevels set the installed height to 5-5/16" and the projection to 5-3/4". We offer a couple of different versions of this profile for your review and consideration, crown 5.625" - 13, crown 5.687" - 4 and crown 7.750".
We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to obtain the correct width size of knife steel before you start knife grinding procedures and production. We invite you to search for other design ideas for your client's elegant home. We have over 16,400 profile options for you to choose from.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.062
Depth of Cut: 0.936
Left Cutter Head
Thickness: 1.062
Depth of Cut: 0.699
Top Cutter Head
Width: 7.812
Depth of Cut: 0.688
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.47
$144.47
$522.47
Not Needed
Total:
$811.42
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.72
$151.72
$556.72
Not Needed
Total:
$860.16
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.59
$162.59
$608.09
Not Needed
Total:
$933.28
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
