Crown Moulding 5-5/8" - 9

Crown Moulding 5-5/8" - 9

Crown Moulding 5-5/8" - 9

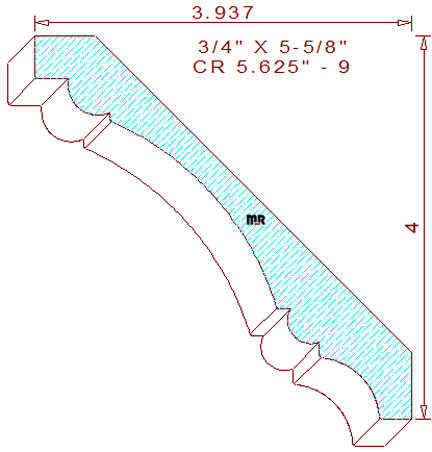

This beautiful crown moulding 5.625" - 9 measures 5.625" wide by .750" thickness. The eye-catching profile is comprised of a 7/16" tall vertical line on top, connected to a 5/16" radius ovolo that transitions into a 3-1/8" cavetto in the middle, joined to a 1/4" ovolo with a 21/32" cove and a 23/64" wide horizontal line at the bottom of the design. We have a small group of this lovely pattern in different widths for your review and consideration, crown molding 6.000" - 12, crown 5.187" - 9 and crown 4.250" - 40.

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 4" tall with a projection of 3-15/16" wide. Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. Two high points in the detail were purposely positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates. Perhaps a felt lined hold down shoe might be used to eliminate any burnish marks left on the beads from the machines pressure element.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.625" / Depth of Cut = .447" (top knives).

Thickness = .750" / Depth of Cut = .450" (right blades) & .483" (left cutters), only on template is required for making the side knives.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
