Crown 5-21/32" - 13
Crown 5-21/32" - 13

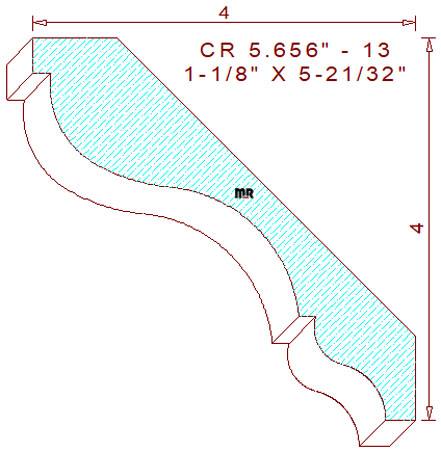

This custom 5-21/32" - 13 crown mould measures 5.656" wide by 1.125" thickness, allowing the detail to be milled from either five or six-quarter lumber. The prestigious supporting profile is composed of a 3/8" tall by 3/16" wide squared lines on top, connected to a graceful two tangent radius cyma reversa with a 3/16" wide line segment in the center, attached to another smaller two tangent radius ogee with a 5/16" wide horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of four inches tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.620
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.620
Top Cutter Head
Width: 5.656
Depth of Cut: 0.752
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$415.55
Not Needed
Total:
$716.05
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$441.17
Not Needed
Total:
$760.67
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$479.61
Not Needed
Total:
$827.61
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
