Crown Moulding 5-21/32" - 6

Crown Moulding 5-21/32" - 6

Crown Moulding 5-21/32" - 6

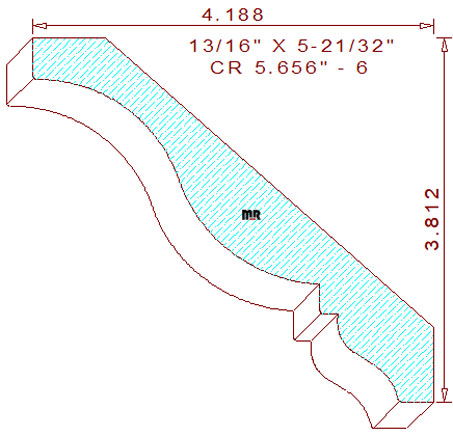

This elegant crown moulding 5-21/32" - 6 measures 5.656" wide by .812" thickness, permitting the pattern to be machined sprung (laying horizontally flat) out of four quarter lumber. The terminating designer profile is comprised of a 7/16" tall vertical line at the top left, connected to a 1-9/16" concave semicircle tangent off of a 1-5/8" radius arc, creating the cyma recta, attached to a small 5/16" tall by 3/16" wide stepped lines that transition into a two tangent radius ogee with a 3/8" wide horizontal line at the bottom of the design. We offer another similar profile with identical height and projections for your review and consideration, crown molding 5.656" - 9.

These spring angles are fixed at forty-one & one half degree and forty-eight & one half degree which are included in the downloadable dxf file, these specific back bevels set the installed height at 3-13/16" tall with a projection of 4-3/16" wide. Three high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.662" / Depth of Cut = .410" (top knives.)

Thickness = .812" / Depth of Cut = .656" (right blades) & .657" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
