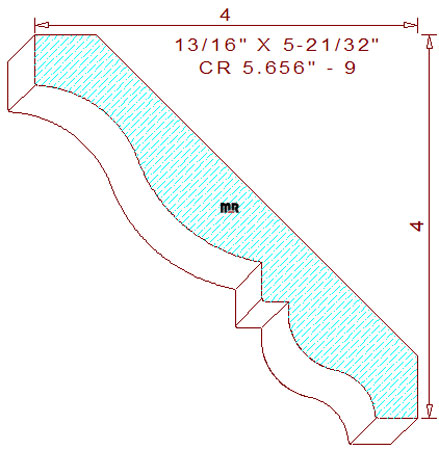

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of of 4" tall and wide. Two high points in the detail were deliberately positioned on the same plane, our well thought out design features will assure excellent hold down conditions while milling, providing the pressure shoe is parallel to the machine bed plates. You may want to consider using a felt lined pressure shoe to eliminate any unsightly burnish mark they may be left on top of the ogee from the metal hold down shoe on the molder.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.
Width = 5.662" / Depth of Cut = .435" (top knives.)
Thickness = .812" / Depth of Cut = .458" (right blades) & .458" (left cutters.)
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
