Crown 5-11/16"
Crown 5-11/16"

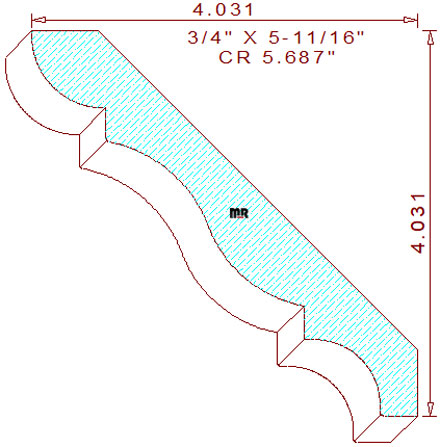

This colonial 5-11/16" crown mould measures 5.699" width by .750" thickness, allowing the use of four-quarter lumber for machining sprung (laying horizontally flat) on a commercial-grade molder. The fancy supporting profile contains a 25/32" quarter round bead on the top left, attached to an 11/32" vertical line segment connected to a free-flowing two tangent radius cyma recta in the center. Merged with an additional 11/32" vertical line with an 11/16" cove and a 3/8" horizontal line segment on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-1/32" tall with a projection of 4-1/32" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.490
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.490
Top Cutter Head
Width: 5.687
Depth of Cut: 0.353
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$391.60
Not Needed
Total:
$692.10
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$417.35
Not Needed
Total:
$736.85
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$455.97
Not Needed
Total:
$803.97
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
