Crown 5-11/16" - 3
Crown 5-11/16" - 3

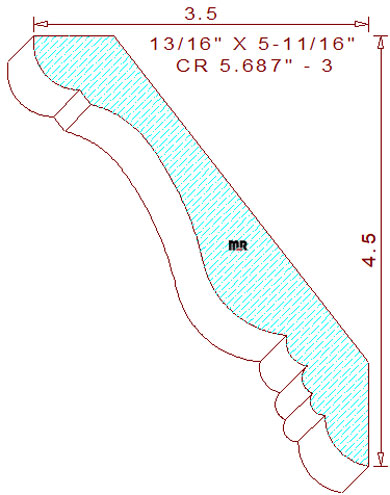

This elegant 5-11/16" - 3 crown mould measures 5.701" width by .812" thickness, allowing the use of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The attractive supporting profile contains a 31/64" quarter round bead with a small angled fillet on the top left, attached to a graceful free-flowing three tangent radius cyma recta in the center. They merge with three cascading downward semicircular beads with a 35/64" convex arc on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-1/2" tall with a projection of 3-1/2" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.655
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.688
Top Cutter Head
Width: 5.687
Depth of Cut: 0.413
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$377.72
Not Needed
Total:
$729.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$403.47
Not Needed
Total:
$774.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$442.09
Not Needed
Total:
$841.59
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
