Crown 5-3/4" - 22

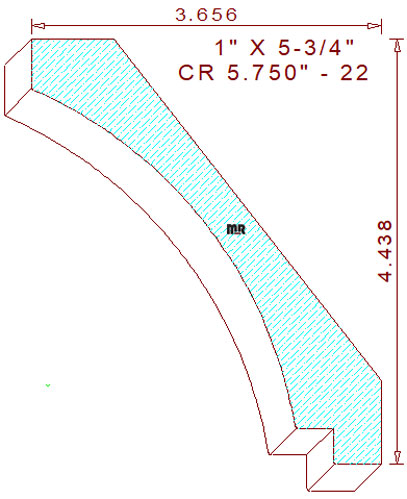

This designer 5-3/4" - 22 crown mould measures 5.750" wide by 1.000" thickness. The lovely profile is comprised of a 4-11/16" radius cove in the center with a 17/32" tall vertical segment at the top, the lower section consists of a 3/8" wide by 3/8" tall notch connected to a 1/2" broad line at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees. These specific back bevels set the installed height to 4-7/16" and the projection to 3-21/32". Three high points in the detail were deliberately positioned on the same plane; this specialized design feature will assure excellent hold-down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates. Take advantage of our specialized design skills with over forty years experience, in moulding manufacturing, superior designed acrylic templates, and exceptional quality cutters.
