Crown Moulding 5-15/16" - 3

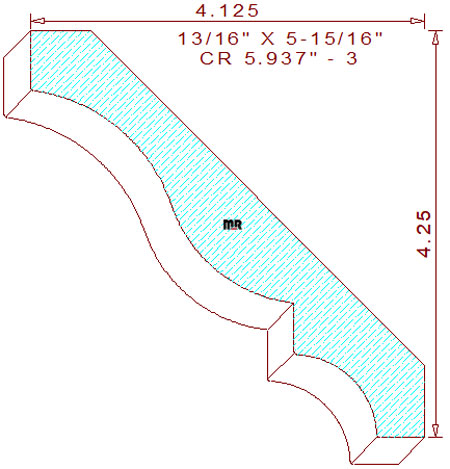

This traditional crown molding 5-15/16" - 3 measure 5.928" width by .812" thickness, permitting the use of four quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The standard terminating profile contains a 5/8" tall vertical line segment on the top left. The fillet attaches to a 1-25/32" concave semicircle tangent to a 1-17/32" convex arc creating the free-flowing cyma recta in the center. The lower portion consists of a 17/32" vertical fillet joined to a 7/8" cove with a 1/2" flat line on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-1/4" tall with a projection of 4-1/8" across the top.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process, the knives will be capable of milling some of the finest quality architectural moldings you have ever produced.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.937" / Depth of Cut = .519" (top knives).

Thickness = .813" / Depth of Cut = .387" (right blades) & .470" (left cutters).
