Crown Moulding 6-1/8" - 1

Crown Moulding 6-1/8" - 1

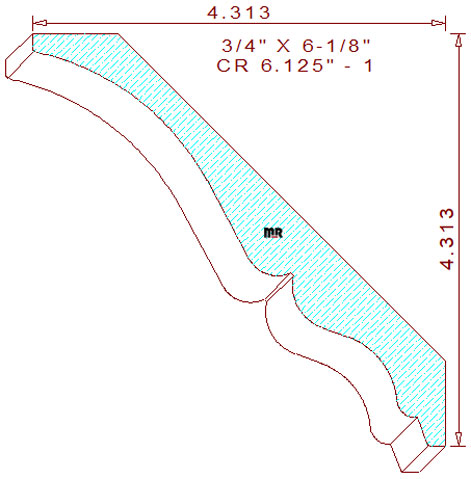

This strikingly attractive crown moulding 6-1/8" - 1 measures 6.100" wide by .750" thickness, allowing the detail to be milled from four quarter lumber. The stunning terminating profile is composed of a 3/16" tall vertical line on top, connected to a 2-11/16" concave semicircle tangent off of a small angled line and a 21/64" radius arc that merges with a 1/32" wide sunk fillet in the center, attached to a graceful three tangent radius cyma reversa that joins to a 5/16" tall angled line and a 3/16" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 4-5/16" tall and wide.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.125" / Depth of Cut = .432" (top knives.)

Thickness = .750" / Depth of Cut = .628" (right blades) & .628" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
