Crown 6-1/4" - 2

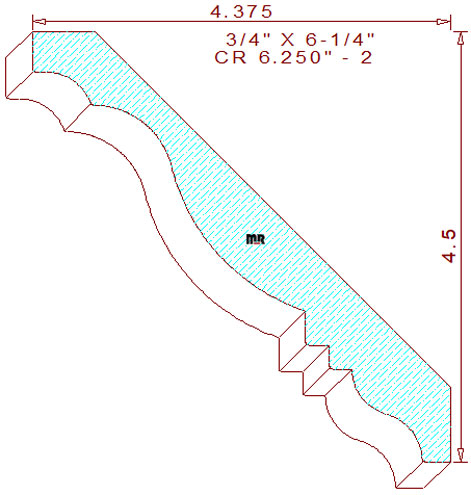

This elegant crown molding 6-1/4" - 2 measures 6.275" width by .750" thickness, permitting the use of a 6-1/2" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The stylish terminating profile contains a 27/64" tall vertical fillet on the top left. The line connects to a 1/2" cove and a two tangent radius s-shaped curvature in the center. The lower portion of the pattern consists of two sets of perpendicular lines and a two tangent radius ogee with a 5/16" wide flat line on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-1/2" tall with a projection of 4-3/8" across the top.

We're delighted you found a beautiful profile that interests you; consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. Our companies have a few things in common: our passion for excellence and a quest to be paramount craftsmen for all our clients.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.250" / Depth of Cut = .436" (top knives).

Thickness = .750" / Depth of Cut = .466" (right blades) & .554" (left cutters).
