Crown 6-3/8" - 4
Crown 6-3/8" - 4

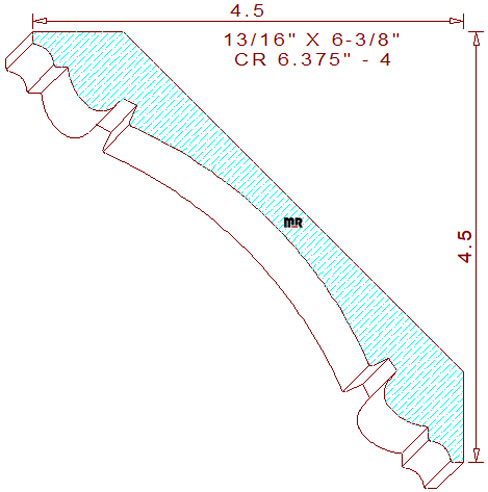

This premier 6-3/8" - 4 crown mould measures 6.364" width by .812" thickness, enabling the use of four-quarter lumber for milling on a commercial-grade molder. The symmetrical terminating profile contains a 4-13/16" radius concave arc in the center. This semicircle connects to a 5/32" wide by 7/32" deep sunken fillet, a thumbnail-shaped arc, and a 7/32" cove flanked by small line segments on the design's top and bottom. The set spring angles are at forty-five degrees; these committed back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-1/2" tall with a projection of 4-1/2" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.669
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.669
Top Cutter Head
Width: 6.375
Depth of Cut: 0.501
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$413.50
Not Needed
Total:
$722.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$442.00
Not Needed
Total:
$770.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$484.75
Not Needed
Total:
$841.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
