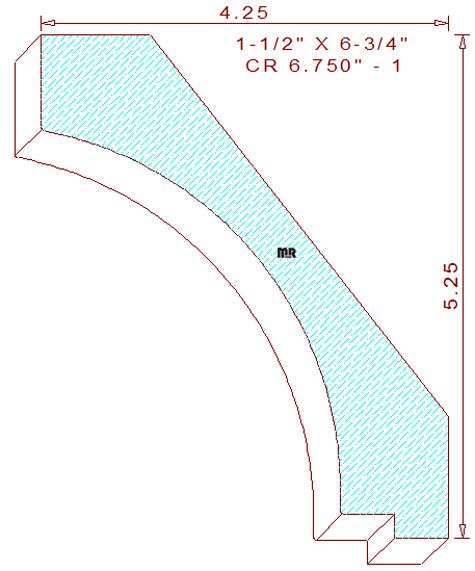

This Crown/Cove Moulding 6-3/4" - 1 measures 6.750" wide by 1.500" thickness, the detail is comprised of a 3-13/16" radius cavetto in the center flanked by a 9/16" wide by 1/4" tall two step fillet at the bottom with a one inch vertical fillet positioned at the top of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree which sets the installed height at 5-1/4" tall with a projection of 4-1/4" wide. We also have a larger version of this particular detail named Crown- 7.750" - 1, simply change search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our moulding profile designs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
