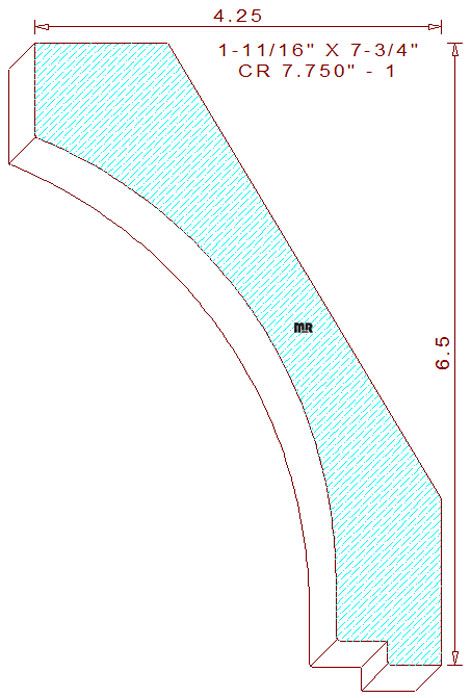

This Crown/Cove Moulding 7-3/4" - 1 measures 7.760" wide by 1.687" thickness. The detail is comprised of a large radius cavetto in the center flanked by a two step fillet at the bottom and a one inch vertical fillet at the top of the pattern. The spring angles are fixed at thirty-one and fifty-nine degree so the points in the profile on on the same level plane for optimal milling. When installed the height becomes 6-1/2" tall with a projection of 4-1/4" wide. We also have a smaller version of this particular detail named Crown- 6.750" - 1, simply change search parameters to view. Custom-made excellence is a phrase used to define the beauty, style & artisanship of all our moulding profile designs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
