Crown Moulding 7"

Crown Moulding 7"

Crown Moulding 7"

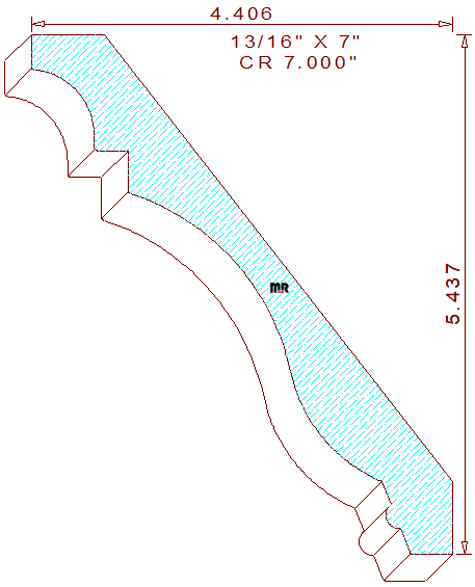

This good looking crown moulding 7" measures 7.000" wide by .812" thickness, allowing the pattern to be machined from four quarter lumber. The stunning beauty of the design is sure to catch the eyes of even the most sophisticated architect, designer or homeowner alike. Beginning at the top the profile is composed of a 11/16" cove flanked by 3/8" tall line above and a small notch below, joined to a free flowing two tangent radius cyma recta in the middle, attached to a splay faced angled line with a 1/4" tall half round bead in the center. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 5-7/16" tall with a projection of 4-13/32" wide.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Four high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, as long as the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.000" / Depth of Cut = .434" (top knives.)

Thickness = .813" / Depth of Cut = .469" (right blades) & .605" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
