Crown 7" - 10
Crown 7" - 10

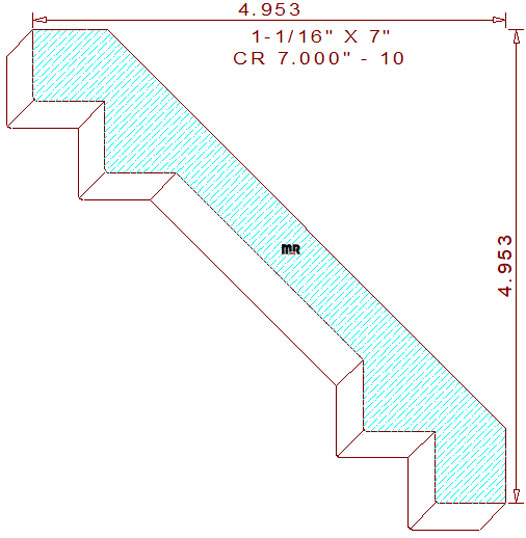

This shaker-style 7" - 10 crown mould measures 7.000" wide by 1.062" thick, allowing the detail to be machined from five-quarter lumber. The symmetrical beveled profile consists of two three-quarter-inch-wide by three-quarter-inch-tall steps at the top and bottom of the pattern, with a two-and-three-quarter-inch-wide splay face in the center. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at identical dimensions of 4-61/64" tall and wide.
Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years’ experience in woodworking and who was a former Weinig field service technician. From an idea in your mind to reality in your home, our custom profiles reflect the creative style of your imagination. Let us assist you in complementing the architectural decor of any room with any one or more of our attractive moulding patterns.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Top Cutter Head
Width: 7.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$446.00
Not Needed
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$477.00
Not Needed
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$523.50
Not Needed
Total:
$861.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
