Crown 7" - 26
Crown 7" - 26

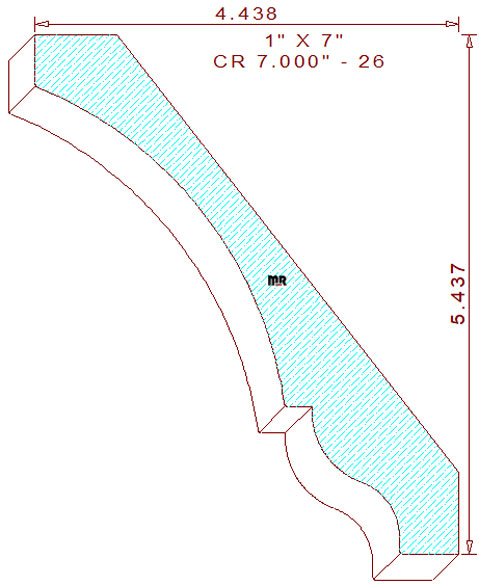

This delightful 7.000" - 26 crown mould measures 7.017" wide by 1.000" thick, requiring the use of five-quarter lumber for milling and being sprung (laying horizontally flat) on a commercial-grade molder. The lovely terminating profile features a 17/32" tall vertical fillet on the top left. The line segment connects to a 4-15/64" radius concave semicircle in the center, joined by a 19/64" flat line and a two-tangent radius cyma reversa with a 5/8" flat line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-7/16" tall with a projection of 4-7/16" across the top.
Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create, from your outlined idea concepts and our vast knowledge of the woodworking industry.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.674
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.525
Top Cutter Head
Width: 7.000
Depth of Cut: 0.609
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$446.00
Not Needed
Total:
$788.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$477.00
Not Needed
Total:
$838.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$523.50
Not Needed
Total:
$913.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
