Crown 7" - 29
Crown 7" - 29

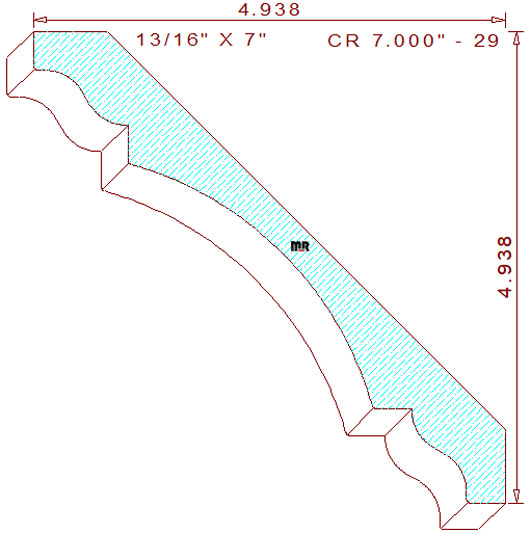

This concave 7" - 29 crown mould measures 6.983" wide by .813" thick, allowing the use of four-quarter lumber for machining on an industrial-grade molder. The symmetrical terminating profile features a 3-21/32" cove in the center. A 13/32" line segment flanks the cavetto and joins to two tangent 7/16" radiuses, creating an ogee, with a 13/32" tall & wide line on both the top left and bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-15/16" tall with a projection of 4-15/16" across the top.
Review our commentary about axial constant positioning for crown bevels. The article will help you dial this profile in axially, provided the machine is properly calibrated. Three high points in the design were deliberately positioned on the same plane; our disciplined design features will assure excellent hold-down conditions while milling, as long as the pressure shoe is parallel to the machine bed-plates.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Top Cutter Head
Width: 7.000
Depth of Cut: 0.470
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$446.00
Not Needed
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$477.00
Not Needed
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$523.50
Not Needed
Total:
$861.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
