Crown Moulding 7" - 5

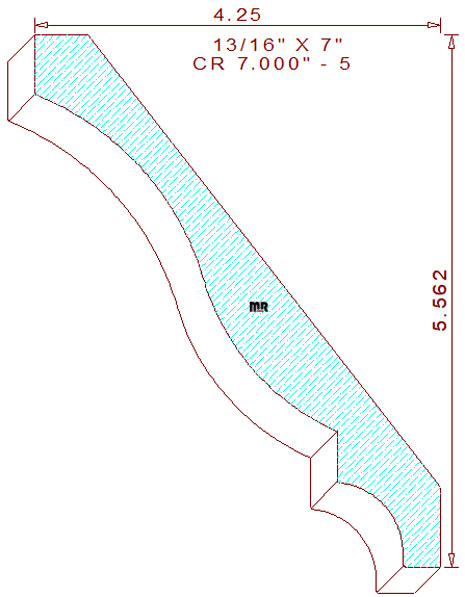

This conventional crown molding 7" - 5 measures 7.000" width by .813" thickness, permitting the use of four quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The traditional terminating profile contains a 5/8" vertical line on the top left. The short fillet connects to a three-inch concave semicircle, tangent to a 2-1/2" radius convex arc with a 17/32" tall line in the center. The lower portion of the pattern consists of a 47/64" cove with a 25/64" broad line on the bottom right corner. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-9/16" tall with a projection of 4-1/4" across the top.

Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .429" (top knives).

Thickness = .812" / Depth of Cut = .344" (right blades) & .660" (left cutters).
