Crown 7-1/2" - 10

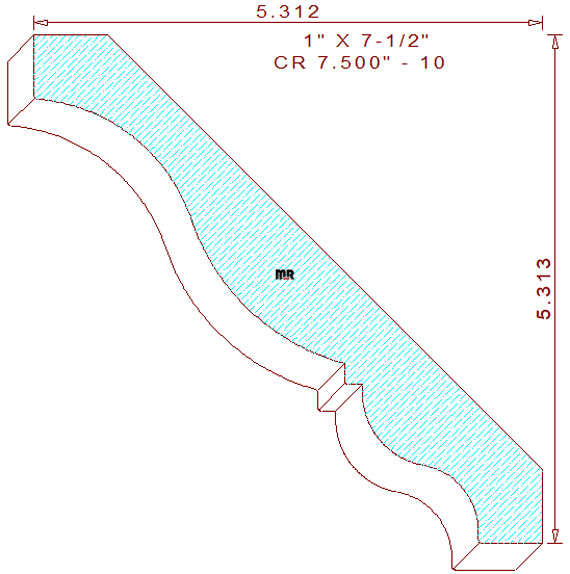

This elegant 7-1/2" -10 crown mould measures 7.500" wide by 1.000" thickness, enabling the pattern to be machined out of four quarter lumber. The fashionable terminating profile is composed of a 21/32" tall vertical line on the top left, connected to a 1-7/8" concave semicircle tangent to a 2-5/16" convex arc creating the cyma recta in the center, attached to a 3/16" wide by 7/32" tall perpendicular lines that merges with a two tangent radius cyma reversa and a 21/32" broad horizontal line on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 5-5/16" tall with a projection of 5-5/16" wide.

Architects, interior designers, contractors, lumber mills, cabinet shops, and moulding manufacturers have been utilizing our vast variety of moulding designs for years. We trust that you will find the perfect profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.
