Crown Moulding 7-1/2" - 2

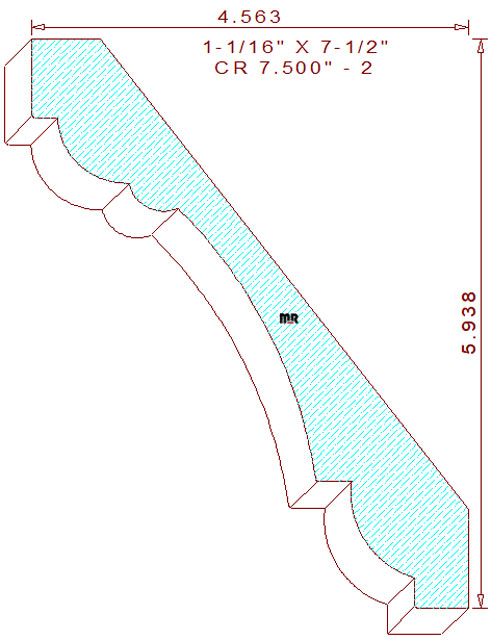

This decorative crown molding 7-1/2" - 2 measures 7.500" width by 1.062" thickness, necessitating the use of five quarter lumber for machining on an industrial style molder. The lovely terminating profile contains a 13/16" tall by 9/32" wide perpendicular lines on the top left. The straight line connects to a 23/32" radius convex arc joined to a 3/8" half bead with a 4-15/16" concave semicircle in the center. The lower portion retains a 3/8" wide flat line attached to a 15/16" radius ovolo with a 5/16" tall by 9/16" wide right angle on the bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-15/16" tall with a projection of 4-9/16" across the top.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years' experience in woodworking and a former Weinig molder/grinder field service technician. From just an idea in one's mind to reality in their beautiful home, our custom profiles reflect your imagination's creative style. Let us help you complement the architectural decor of any room with any one or more of our attractive molding patterns.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.500" / Depth of Cut = .652" (top knives).

Thickness = 1.062" / Depth of Cut = .447" (right blades) & .808" (left cutters).
