Crown 7-5/8" - 1

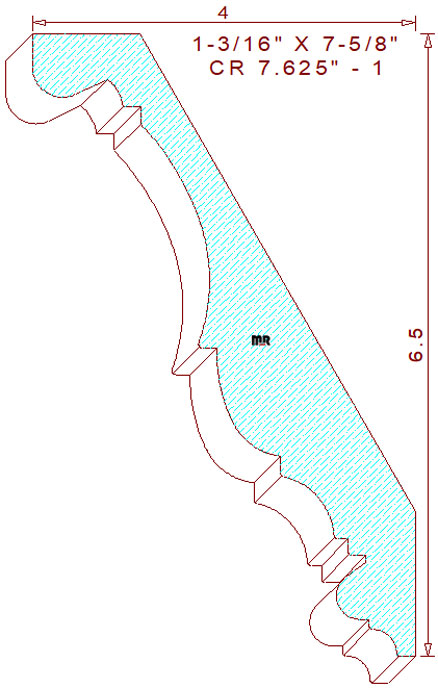

This beautifully ornate 7-5/8" - 1 crown mould measures 7.625" wide by 1.187" thick, allowing the detail to be milled, sprung (laying horizontally flat) out of six-quarter lumber. The highly decorative profile is composed of many common geometrical shapes, including two thumbnail-shaped semicircular arcs, coves, ovolos, perpendicular notches, and stepped fillets, all of which come together to create this elegant terminating crown mould. The spring angles are fixed at 30 and 60 degrees; these are included in the downloadable DXF file below. When installed, these back cutters set the height to 6-1/2" and the projection to 4". Three high points in the detail were deliberately positioned on the same plane; our disciplined design features will assure excellent hold-down conditions while milling, as long as the pressure shoe is parallel to the machine bed-plates.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our moulding patterns. Whether you own a recently built house or an older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

Before beginning knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill the left cutters on your machinery.
