Crown Moulding 7-5/8" - 3

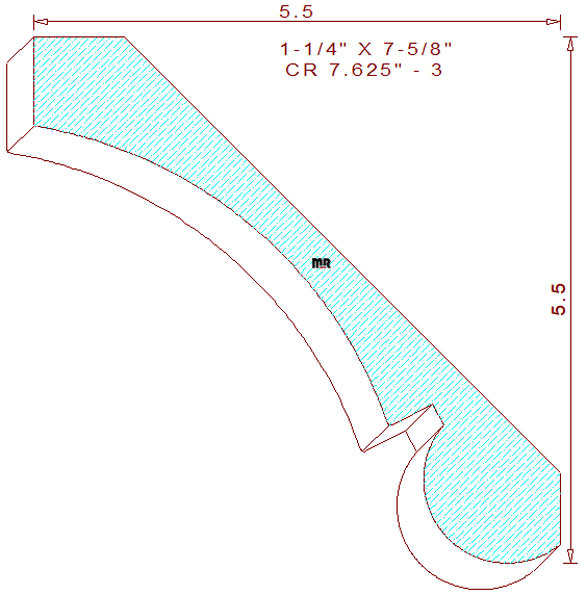

This concave crown moulding 7-5/8" - 3 measures 7.639" wide by 1.312" thickness, allowing the detail to be milled sprung (laying horizontally flat) out of six quarter lumber. The beautifully large profile is composed of a 15/16" tall vertical line segment on top left, connected to a 4-23/32" radius cove that transitions into a small 1/4" tall by 1/2" deep sunk fillet or reveal in the lower portion, joined to a 7/8" radius half round bead at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at an identical dimension of 5-1/2" tall and wide. Two high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling as long as the pressure shoe is parallel to the machine bed-plates.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.625" / Depth of Cut = .937" (top knives.)

Thickness = 1.312" / Depth of Cut = .667" (right blades) & .529" (left cutters.)
