Crown 8" - 14

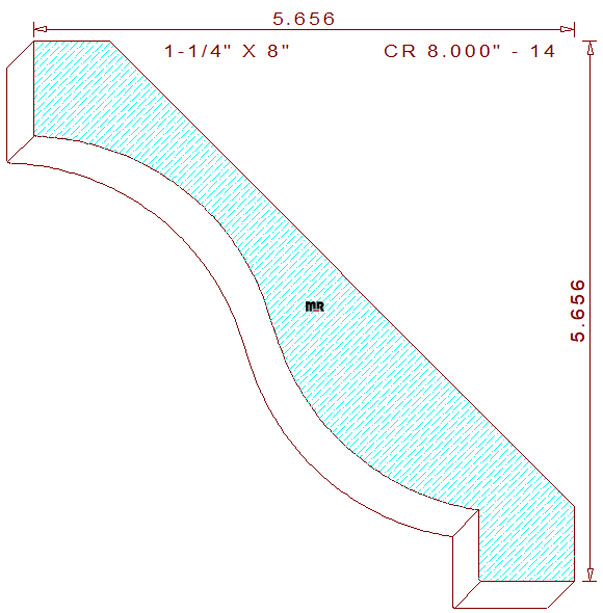

This simplistic 8" - 14 cyma recta crown mould measures 8.000" wide by 1.250" thick, requiring the use of six quarter lumber for milling, sprung (laying horizontally flat) on an industrial moulder. The stylish terminating profile is comprised of a one-inch tall vertical line on the top left, connected to an appealing two-tangent radius cyma recta made up of 2-5/8" concave & convex semicircular arcs in the center, attached to 3/4" tall by one-inch wide perpendicular lines on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner portion of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height and projection at an identical dimension of 5-21/32" tall and wide.
