Crown 8-1/2" - 8
Crown 8-1/2" - 8

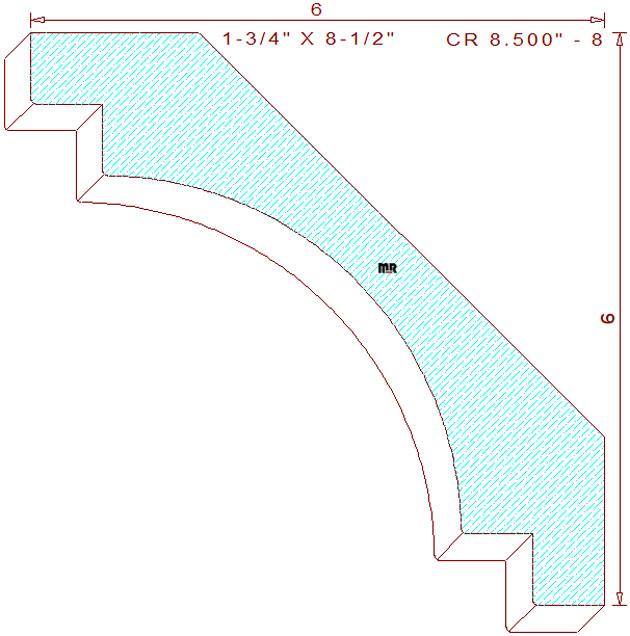

This beautifully large 8-1/2" - 8 crown mould measures 8.500" wide by 1.750" thickness, necessitating the use of eight-quarter lumber for milling on an industrial moulder. The symmetrical profile consists of a large 3-3/4" radius cove in the center, flanked by two 3/4" notched fillets with a 3/4" perpendicular line on both the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of six inches tall and wide.
Before beginning knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this profile will not be able to be milled on certain machine models.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 1.300
Left Cutter Head
Thickness: 0.000
Depth of Cut: 1.300
Top Cutter Head
Width: 8.500
Depth of Cut: 1.073
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$148.00
$105.00
(Template not needed)
$561.00
Not Needed
Total:
$814.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
$112.00
(Template not needed)
$598.00
Not Needed
Total:
$865.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$165.50
$122.50
(Template not needed)
$653.50
Not Needed
Total:
$941.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
