Door Sill 5"
Door Sill 5"

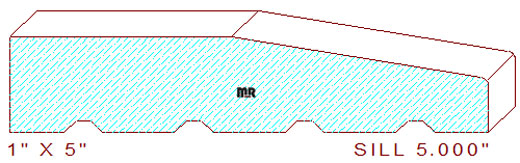

This 5" door sill measures 5.000" wide by 1.000" thick. The funtional profile comprises a 2-5/16" wide horizontal fillet, connected to a nine and one quarter degree bevel with a dimension of 2-11/16" wide with a 3/32" radius on the edge, leaving a 9/16" thickness dimension on the thin side of the detail. Please search our backout category for an appropriate relief cut for this pattern. We have a few options for you to choose from.
Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years. We trust that you will find the perfect profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us ; we would be honored to assist you.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.670
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$342.00
Total:
$707.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$388.00
$365.00
Total:
$753.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$422.50
$399.50
Total:
$822.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
