Window Sill Moulding 5-1/8"

Window Sill Moulding 5-1/8"

Window Sill Moulding 5-1/8"

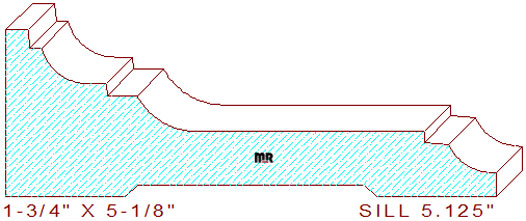

This decorative window sill moulding 5-1/8" measures 5.125" wide by 1.750" thickness, necessitating the use of eight quarter lumber for milling on an industrial moulder. Because of the large depth of cut, the detail will require two different profile machining stations during the milling process. The luxurious profile is composed of a 1/4" wide horizontal line on the top left, connected to a 1/8" wide by 3/16" deep slightly obtuse notch that joins to a 1/2" cove an another 5/16" wide by 1/8" deep notch, attached to a three inch wide congee made up from a 11/16" cove in the center, merged with a 1/4" wide by 1/8" perpendicular cut out with a 1/2" radius cove leaving a 1/4" thickness dimension on the right side of the design.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.125" / Depth of Cut = 1.063" (top knives) & .125" (bottom cutters.)

Thickness = 1.750" / Depth of Cut = .750" (right blades.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
