Sill / Window Stool Moulding 5-1/4"

Sill / Window Stool Moulding 5-1/4"

Sill / Window Stool Moulding 5-1/4"

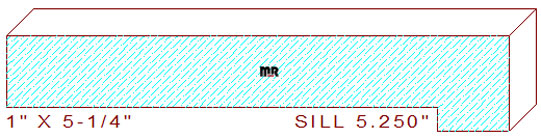

This basic window sill moulding 5-1/4" measures 5.250" wide by one inch thickness, requiring the use of five quarter lumber for milling on an industrial molder. The simplistic profile is comprised of a four and one-half inch wide by one-quarter inch deep rabbet on the bottom side, leaving a three-quarter inch wide line segment on the right side of the pattern. The profile is oriented on the molder with the thick edge up against the inside fix fence and the flat side down on the bed plates, this will allow the pressure shoe to be moved laterally forward and placed down in the rabbeted area.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Homag molder, our cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .250" (top knives.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
