Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Door Cope & Stick 1-3/4" - 24

Door Cope & Stick 1-3/4" - 24

Door Cope & Stick 1-3/4" - 24

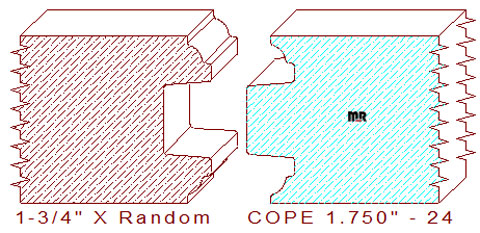

This decorative door cope and stick 1-3/4" - 24 measures 1.750" thickness. The width can be machined to any desired size within the parameters of the molder or shaper used to mill the pattern. The profile comprises a 3/4" tall by 1/2" deep tongue and groove joint flanked by a small ovolo consisting of a 3/16" radius quarter circle. A .008" void is built in the joint area for glue to escape during assembly. We offer a similar profile in a 2-1/4" thickness dimension for your review and consideration, door cope 2.250" - 9. Our high precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.750
Depth of Cut: 0.500
Left Cutter Head
Thickness: 1.750
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$168.00
$168.00
Not Needed
Not Needed
Total:
$336.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$178.00
Not Needed
Not Needed
Total:
$356.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$188.00
$188.00
Not Needed
Not Needed
Total:
$376.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
