Door Cope & Stick 2-1/4" - 9

Door Cope & Stick 2-1/4" - 9

Door Cope & Stick 2-1/4" - 9

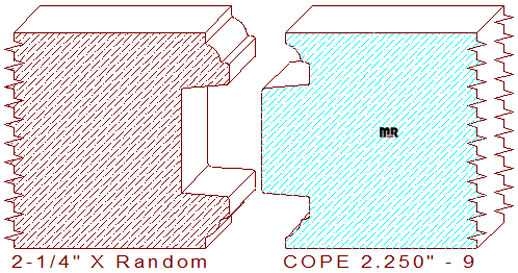

This decorative door cope and stick 2-1/4" - 9 measures 2.250" thickness, the width can be machined to any desired size within the parameters of the molder and shaper used to mill the patterns. The profile is comprised of a 1-5/32" tall by 1/2" deep tongue and groove joint, flanked by a small ovolo consisting of a 3/16" radius quarter round circle, there is a .008" void built in the joint area for glue to escape during assembly. We offer a similar profile in a 1-3/4" thickness dimension for your review and consideration, door cope 1.750" - 24. Our high precision templates and knives include the required four degree draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Mirror Reflections provides the cut steel size on all their molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of us caring about the overall success of your business.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 2.250" / Depth of Cut = ..500" (male blades) & .500" (female cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
