Door Cope & Stick Molding 1-3/4" - 31

Door Cope & Stick Molding 1-3/4" - 31

Door Cope & Stick Molding 1-3/4" - 31

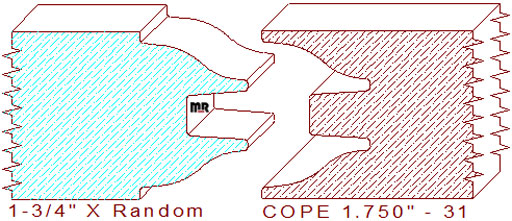

This beautiful interior door cope & stick moulding 1-3/4" - 31 measures 1.750" thickness, permitting the detail to be milled out of eight quarter lumber, the width can be machined to any desired size within the parameters of the machinery used to cut the pattern. The fancy profile is composed of a 1/2" tall by 5/8" deep tongue & groove with a .008" void in the joint area for excess glue to escape from during assembly, flanked by a 5/8" concave semicircle, tangent to a 3/4" radius convex arc forming the graceful ogee, joined to a 1/8" vertical line segment on both face sides of the milled stile and rail. We offer an alternative profile with 1/8" less depth of cut in the design for your review and consideration, door cope & stick 1.750" - 6.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the elegant beauty we can create together from your outlined idea concepts and our vast knowledge of the woodworking industry.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Thickness = 1.750" / Depth of Cut = 1.125" (male blades) & 1.129" (female cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
