Door Cope & Stick 3/4" - 2

Door Cope & Stick 3/4" - 2

Door Cope & Stick 3/4" - 2

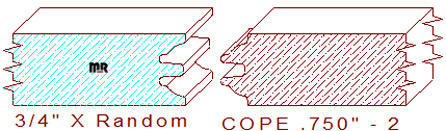

This cabinet door cope & stick 3/4" - 2 measures .750" thickness. The width can be machined to any desired size within the parameters of the shaper used to mill the pattern. The ovolo style profile is composed of a 9/32" wide by 9/64" tall tongue and groove with a .005" void for excess glue to escape during assembly. The upper and lower portions of the design retain a 7/32" radius arc flanked by 7/64" line segments.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination; let us help you design a beautiful pattern today.

For knife quoting purposes, click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .750" / Depth of Cut = .275" (right male) & .278" (right female.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
