Door Cope & Stick 3/4" - 3

Door Cope & Stick 3/4" - 3

Door Cope & Stick 3/4" - 3

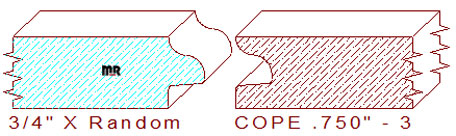

This cabinet door cope & stick 3/4" - 3 measures .750" thickness, permitting the use of four quarter lumber for milling on an industrial shaper or moulder, the width can be milled to any desired size within the parameters of the machinery used to cut the pattern. The beautiful but simplistic profile is composed of a graceful cyma recta made up from a 3/16" concave semicircle tangent to a 13/64" radius convex arc in the upper portion, the lower section consists of a 3/8" wide by 1/4" tall rabbet. There is a .004" void in the joint area for excess glue to escape from during assembly of the male and female parts. Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office, our moulding catalog has over a fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .750" / Depth of Cut = .375" (male blades) & .377" (female cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
