Door Cope & Stick 3/4" - 8
Door Cope & Stick 3/4" - 8

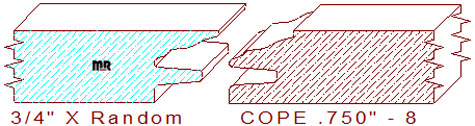

This 3/4" - 8 cabinet door cope & stick measures .750" thick, allowing milling from four-quarter lumber. The width can be milled to any desired size within the parameters of the machinery used to cut the pattern. The decorative profile is composed of a 1/2" wide by 3/16" tall rabbet on the bottom left, joined to a 3/16" tall by 1/2" wide tongue-and-groove joint in the center, merged with a 1/8" cove that transitions into a shallow ogee with a 1/16" tall vertical fillet on the top left. There is a .006" void in the joint area for excess glue to escape during assembly of the male and female parts. Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.
This professionally drafted template-ready CAD dxf file (available for purchase in the box below) contains two high-precision template designs to create cutters for this gorgeous cope & stick design. From an idea in your mind to reality in your home, our custom profiles reflect your creative style. Let us help you complement your architectural decor with any of our attractive moulding designs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.678
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.50
Not Needed
Not Needed
Not Needed
Total:
$152.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.50
Not Needed
Not Needed
Not Needed
Total:
$159.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.50
Not Needed
Not Needed
Not Needed
Total:
$173.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
