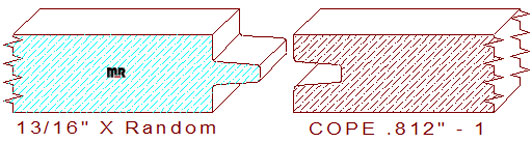

Door Cope & Stick 13/16" - 1

Door Cope & Stick 13/16" - 1

Door Cope & Stick 13/16" - 1

This shaker style door cope & stick 13/16" - 1 measures .812" thickness, the width can be manufactured to any desired size within the parameters of the machinery used to mill the pattern. The simplistic profile comprises a 1/4" tall by 1/2" wide tongue and groove with .006" of void in the joint area, allowing excess glue to escape during assembly. Our high precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail while simultaneously prolonging the milling time between sharpening.

Ever wonder why certain species of lumber have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save substantial money when investing in this style of moulder tooling.

For knife quoting purposes use the calculator below; we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Thickness = .812" / Depth of Cut = .496" (male blades) & .499" (female cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
