Door Cope & Stick 7/8" - 9

Door Cope & Stick 7/8" - 9

Door Cope & Stick 7/8" - 9

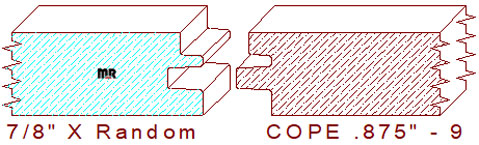

This double tongue & groove door cope & stick 7/8" - 9 measures .875" thickness, requiring five-quarter lumber for milling on an industrial molder. The width can be machined to any desired size within the parameters of the molder or shaper used to mill the pattern. The profile comprises a 3/8" wide by 1/4" tall tongue & groove attached to another 1/4" wide by 1/8" tall t & g increasing the structural integrity of the joint. Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .875" / Depth of Cut = .372" (male blades) & .375" (female cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
