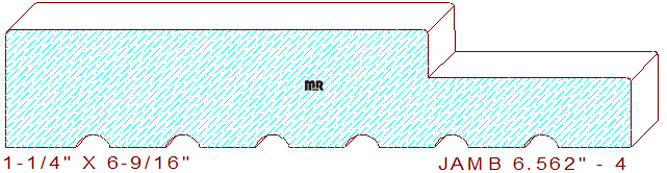

The profile is comprised of a 4-7/16" wide horizontal fillet with 5/64" radius edges, with a 2-1/8" wide by 1/2" deep rabbeted fillet which also retains a 5/64" radius edge.
Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection, on any brand of industrial style machinery.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
