Door Jamb 8"
Door Jamb 8"

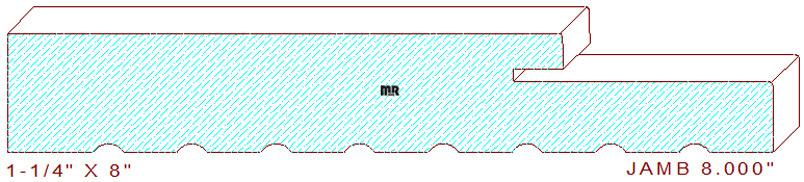

This eight-inch exterior door jamb measures 8.000" wide by 1.250" thick. The profile is comprised of a 5-13/16" wide horizontal fillet with a 3/64" radius edge that transitions downward 1/2" to a 2-3/16" broad straight degment with a 1/16" radius edge. The saw kerf for weather stripping is machined by a universal cutterhead. In contrast, machining on a table saw after the milling process.
Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our custom knife designs will mill flawlessly on them all.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.687
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$533.00
$498.00
Total:
$1031.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$568.00
$533.00
Total:
$1101.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$620.50
$585.50
Total:
$1206.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
