Cabinet Door Moulding 3" - 1

Cabinet Door Moulding 3" - 1

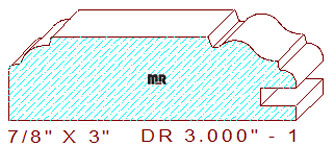

The stylish profile is comprised of a 1-21/32" wide horizontal fillet in the center, connected to an ovolo edge on the left side of the detail. The opposite side consists of a chamfered edge sunk fillet, attached to a cyma reversa with a small vertical fillet, and a 5/32" radius quarter circle located above the dado on the side edge of the pattern.
Ever wonder why certain species of lumber have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
