Cabinet Door Rail Moulding 4-1/4"

Cabinet Door Rail Moulding 4-1/4"

Cabinet Door Rail Moulding 4-1/4"

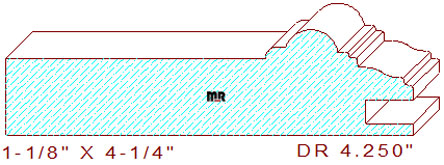

This large mitered door rail moulding 4-1/4" measures 4.250" wide by 1.125" thickness. The beautiful profile is comprised of a 2-23/32" wide horizontal line at 13/16" thickness, connected to a 35/64" wide half round circle flanked by a series of stepped fillets, attached to a small ogee with a notched fillet above the dado.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .760" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
