Fluted Moulding 3-1/4" - 1

Fluted Moulding 3-1/4" - 1

Fluted Moulding 3-1/4" - 1

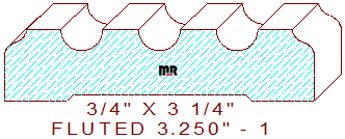

This stylish fluted casing moulding 3-1/4" - 1 measures 3.250" wide by .750" thickness, enabling the detail to be machined from four quarter lumber. The symmetrical profile consists of three 7/16" wide concave half round circles divided by two 3/8" wide horizontal line segments in the center and two at 23/64" wide on the left and right, they join with a two tangent radius ogee on each side edge of the pattern. We offer a similar profile with shallower flutes for your review and consideration, fluted casing 3.250" - 4. Glance at our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .448" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
