Fluted Moulding 3-1/4" - 4

Fluted Moulding 3-1/4" - 4

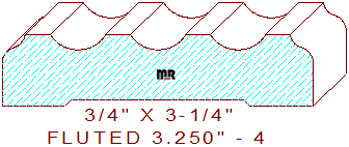

This decorative fluted casing moulding 3-1/4" - 4 measures 3.250" wide by .750" thickness, allowing the detail to be machined from four quarter lumber. The symmetrical profile consists of three shallow 37/64" wide concave flutes divided by 17/64" wide horizontal line segments with a two tangent radius cyma recta on the side edges of the pattern. We offer a similar profile with narrower deeper flutes for your review and consideration, fluted casing 3.250" - 1. Glance at our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a design to match your needs.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .448" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
