Fluted Moulding 3-1/2"

Fluted Moulding 3-1/2"

Fluted Moulding 3-1/2"

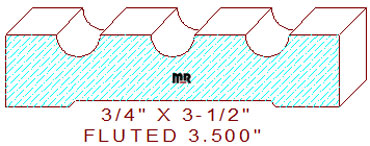

This symmetrical fluted casing molding 3-1/2" measures 3.500" width by .750" thickness, allowing the use of four quarter lumber for milling on an industrial molder. The balanced profile is composed of three 29/64" full half-circles that are evenly spaced by four 17/32" broad horizontal lines. The side edges were intentionally left square and sharp. You may want to review and consider easing the top corner of the detail with any of our radius edges, simply enter the size round-over you wish to view in the boxes provided, here's one we think would work nicely for this pattern, radius .093". We offer an additional profile in the same size with 1/16" rolled edges for your review and consideration, fluted casing 3.500" - 4.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .230" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
