Fluted Moulding 4" - 7

Fluted Moulding 4" - 7

Fluted Moulding 4" - 7

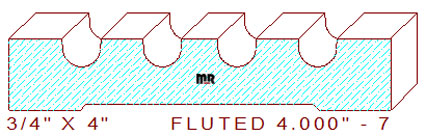

This deep fluted casing moulding 4" - 7 measures 4.000" wide by .750" thickness, the pattern will require four quarter lumber for milling on an industrial moulder. The beautiful profile is composed of four 13/32" wide by 9/32" deep semicircles divided by a 3/8" wide line in the middle, two 7/16" lines to the left and right of center and two 9/16" wide straight lines on each side edge of the pattern. The sharp edge can easily be rounded with one of our many eased edge profiles, here's one we think would work well with this pattern, radius .093". Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, Kentwood, Shop Fox or Williams & Hussey moulder, our cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .291" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
