Fluted Casing Moulding 5-1/2" - 3

Fluted Casing Moulding 5-1/2" - 3

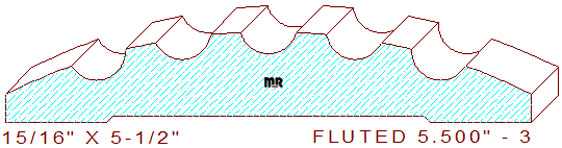

This semi circular fluted casing moulding 5-1/2" - 3 measures 5.500" wide by .937" thickness, requiring five quarter lumber for milling this pattern on a industrial style molder. The arched profile is composed of a 6-7/64" radius arc across the entire face of the detail, there are five evenly spaced 19/64" radius concave semicircles in the center, divided by portions of the arc leaving a 9/32" thickness dimension on each side edge of the pattern. We offer a small group of these style moldings in different widths and thicknesses, here are just a few for your review and consideration, fluted casing 2.500" - 4, 3.000" - 17, 3.500" - 5, 4.000" - 3 and 5.000" - 4.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .709" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
