Fluted Moulding 3-1/2" - 5

Fluted Moulding 3-1/2" - 5

Fluted Moulding 3-1/2" - 5

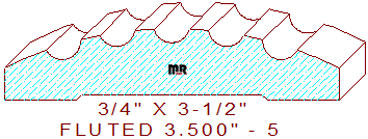

This arched fluted casing moulding 3-1/2" - 5 measures 3.500" wide by .750" thickness. The unique profile is composed of a 3-57/64" radius arc leaving a 11/32" thickness dimension on each side edge, the face has five symmetrical 3/16" radius flutes in the center, divided by 13/64" segments of the arc with 31/64" wide edges of the semicircle on each side. We offer a small family of these style moldings in different widths and thicknesses, here are just a few for your review and consideration, fluted casing 2.500" - 4, 3.000" - 17, 4.000" - 3, 5.000" - 4 and 5.500" - 3.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .474" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
