2-11/16" Full Round

2-11/16" Full Round

2-11/16" Full Round

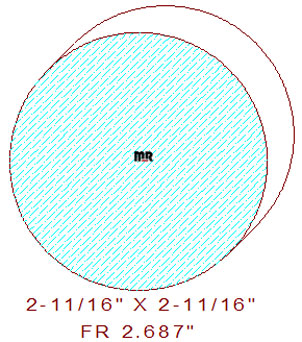

This two and eleven sixteenths full round measures 2.687" wide by 2.687" thickness. The circular profile comprises a 1-11/32" radius arc. Only one template is required for grinding profile cutters for this detail. The circle has been split into four equal parts with good blend areas in the design, so no one will ever realize where one moulding cutter begins or ends.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

For knife quoting purposes click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.687" / Depth of Cut = .593" (top knives) & .593" (bottom cutters.)

Thickness = 2.687" / Depth of Cut = .593" (right blades) & .593" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
